Xiangying is a professional manufacturer of veneer dryers and plywood equipment.
Our 18,000 m² site includes 15,000 m² of buildings, supporting product development, manufacturing and service for customers in China and overseas.
GET A FREE QUOTE
Error: Contact form not found.
Home
OUR PRODUCTS
Best-selling products

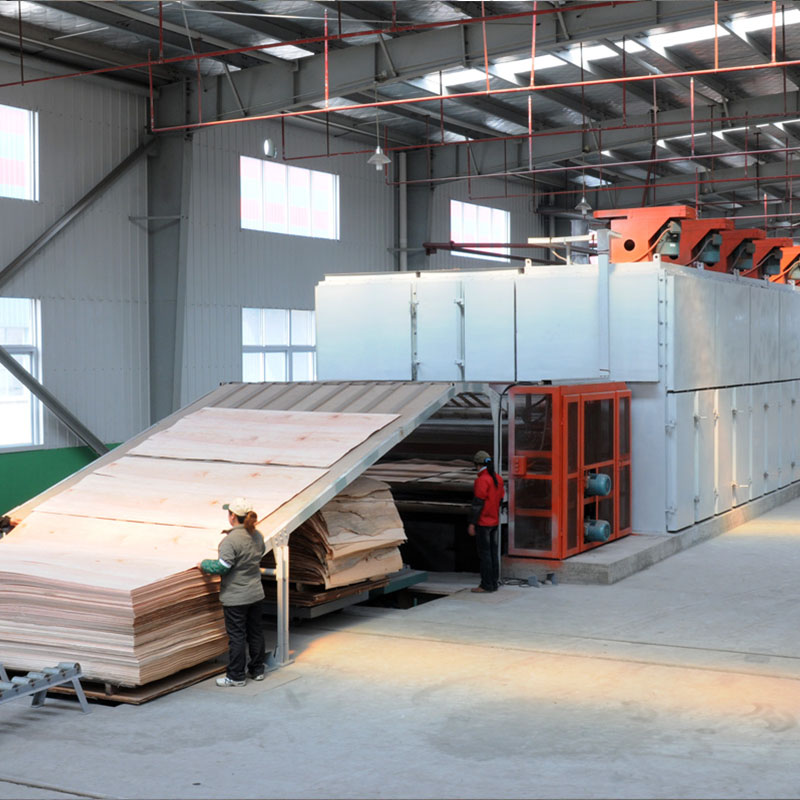

BG1933B Three-Deck Mesh-Roller Combined Veneer Dryer
Our product is a kind of straight-conveying transverse- circulating net-roller dryer, provided with both net and roller structures. net-roller veneer dryer has two kinds' layers of net and roller; it can be in process to dry for face plate and thick core plate at the same time. It has the advantages of less ground space and multi-use of one machine.
Our product is a kind of straight-conveying transverse- circulating net-roller dryer, combining advantages of European dryers. It uses the side equipped centrifugal fans( air flow 62 thousands m3/h). New heat exchanger and rectangle variable cross-section spray boxes make the veneer surface uniformity for heating air. Heating sections fans of front and back areas are equipped by left and right, so they make the veneers the same final humidity after dried. In addition, for the damp climate condition, the dyer adds the cooling open sections length, it is advantages for veneers cooling that it avoids getting damp.
The dryer's heating system use steam or oil boiler. When it uses the oil boiler, it needs to know the system safety, heating system tubes and heating exchangers should avoid carbon deposit and fire accident. Don't let water, acidity and low boiling point material into system.

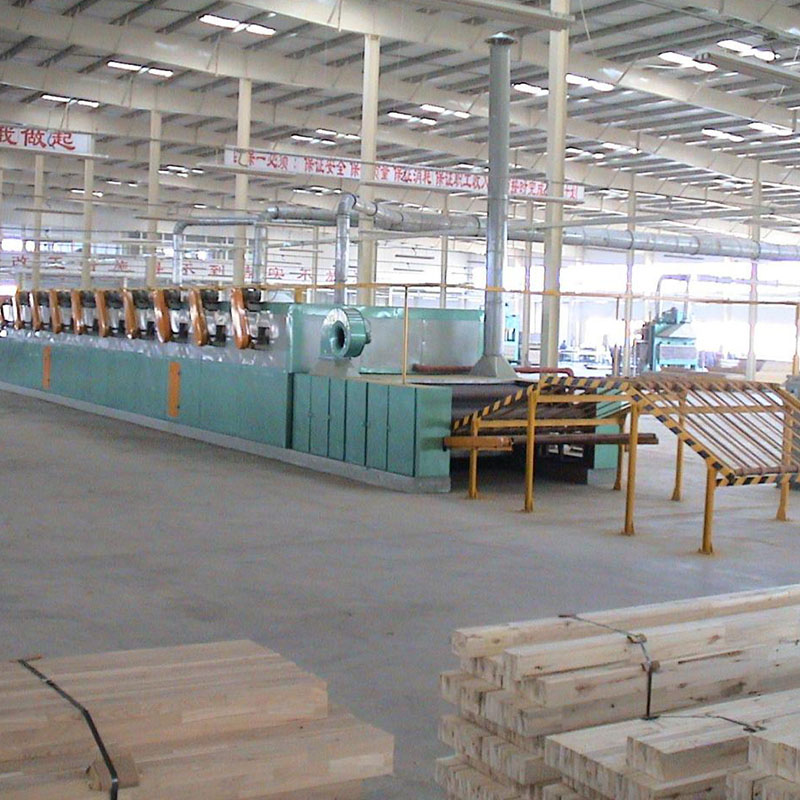

BG1932 Two-Deck Mesh-Roller Combined Veneer Dryer
BG1932 2-layers net-roller veneer dryer has two kinds' layers of net and roller; it can be in process to dry for face plate and thick core plate at the same time. It has the advantages of less ground space and multi-use of one machine.
The BG1932 net-roller dryer machine is designed by unit structure principle, the standard type is 10 sections. 2 meter as a standard for one dryer area, one section cooling room, one drive system, input roller table and output roller table. Customer can choose the sections of dryer machine according to your needs. (5 sections to 15 sections)

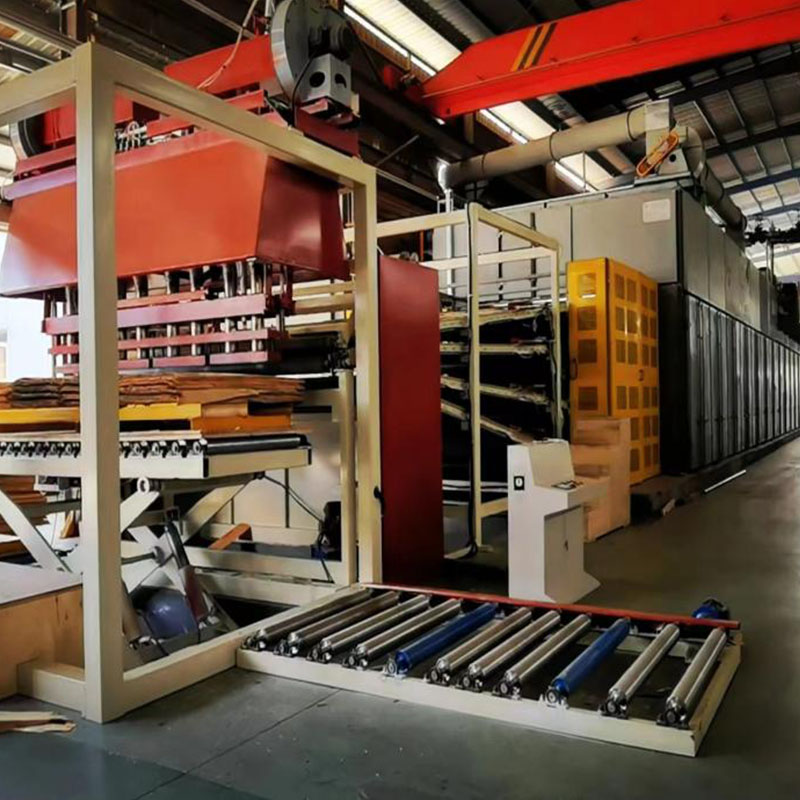

BG1334 Four-Deck Roller Veneer Dryer
BG1334 4-deck jetting roller veneer dryer consists conveying system, heating section, steam system, cooling section, exhausting system and input & output roller system. Heating section consists of two parts, front and back part, with heating fans set on both side to ensure consistent final moisture at each point.
In heating process, air is compressed into heaters by erect centrifugal fans for heating, and then compressed into jetting bellows. Afterwards, hot air is jetted onto veneers conveyed between rollers for drying. Hot damp air then again is drawed into centrifugal fans for a circular use. Part of hot damp air is exhausted through exhausting system in exchange of some fresh air to keep a proper air moisture. It adapt to the technologic conditions: first, cut; second, dry. It is mainly with drying core board of veneers. The stringy orientation of dry veneer is the same as inputting veneer, and the width should be more than 350mm, or it will be happened phenomenon of walling up veneers.

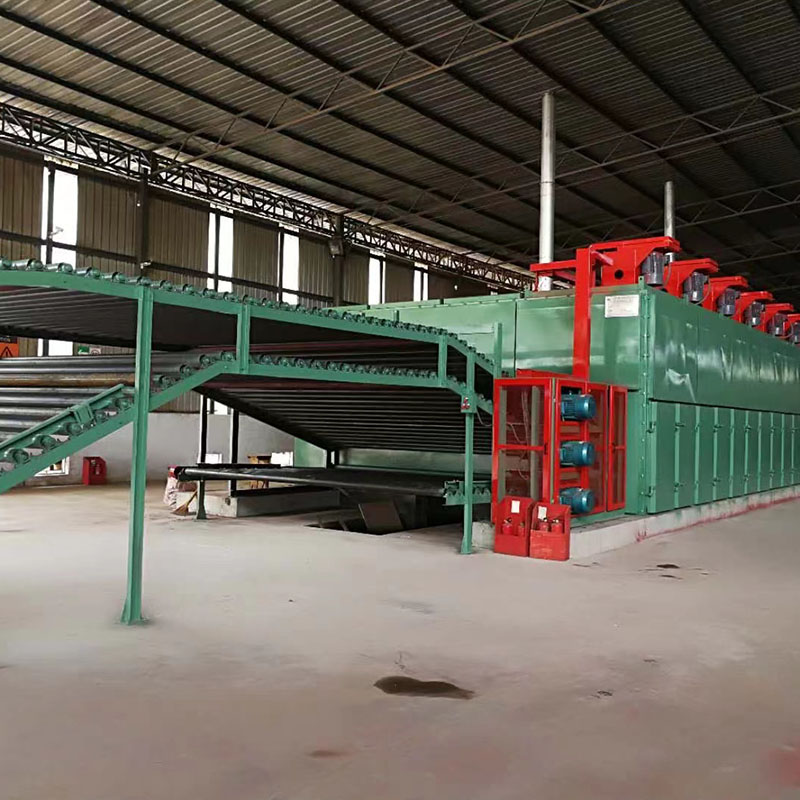

BG1333 Three-Deck Roller Veneer Dryer
BG1333 3-deck jetting roller veneer dryer consists conveying system, heating section, steam system, cooling section, exhausting system and input & output roller system. Heating section consists of two parts, front and back part, with heating fans set on both side to ensure consistent final moisture at each point.
In heating process, air is compressed into heaters by erect centrifugal fans for heating, and then compressed into jetting bellows. Afterwards, hot air is jetted onto veneers conveyed between rollers for drying. Hot damp air then again is drawed into centrifugal fans for a circular use. Part of hot damp air is exhausted through exhausting system in exchange of some fresh air to keep a proper air moisture.
It adapt to the technologic conditions: first, cut; second, dry. It is mainly with drying core board of veneers. The stringy orientation of dry veneer is the same as inputting veneer, and the width should be more than 350mm, or it will be happened phenomenon of walling up veneers.
our service
service
Need technical support? Send us the machine model, serial number, fault description, alarm information, operating parameters, photos and a short video. We will help identify the next inspection steps.
Our team helps diagnose drying-temperature, moisture, ventilation, conveying and heating-system issues using operating data and on-site observations supplied by the customer.

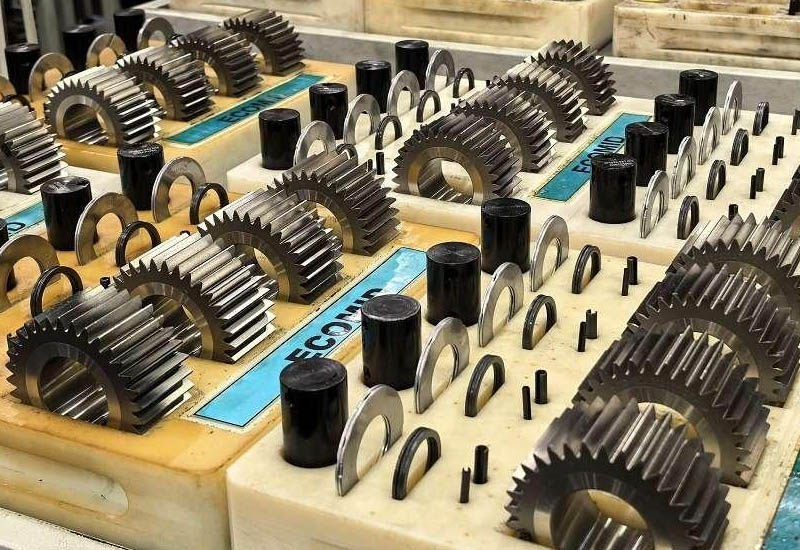

We assist customers with identifying and supplying suitable wearing parts and replacement components for long-term equipment operation.

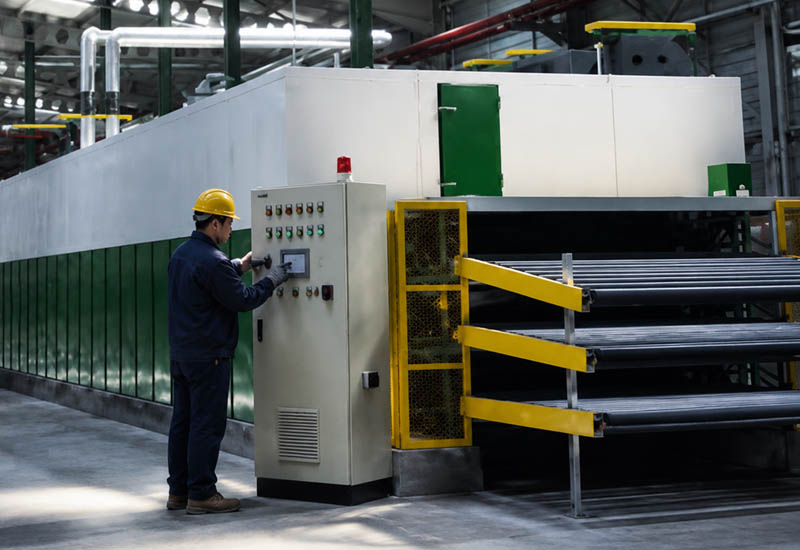

Technical support covers trial operation, parameter adjustment, operating procedures, routine inspection, cleaning and basic troubleshooting.
Industry case
case

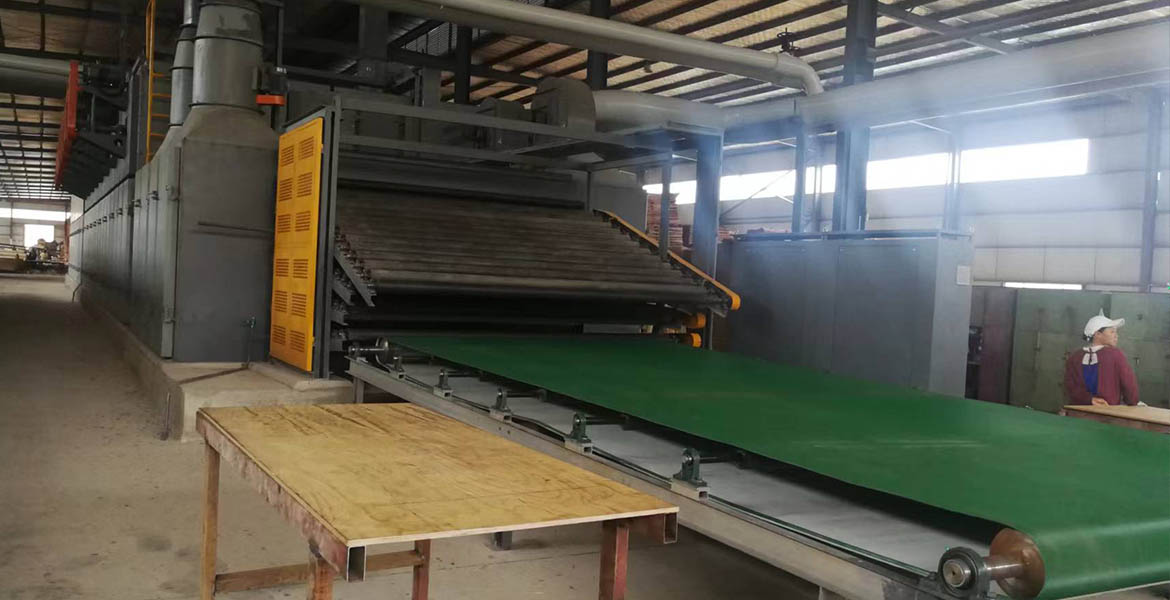

Pu'er Linda Wood Industry — BG1334 Four-Deck Roller Veneer Dryer
In 2018, Pu'er Linda Wood Industry purchased a BG1334 four-deck roller veneer dryer from Xiangying, with a stated daily capacity of 150 m³. The customer manufactures multilayer solid-wood eco boards, engineered flooring, interior decorative panels, blockboard and other wood-based panels.

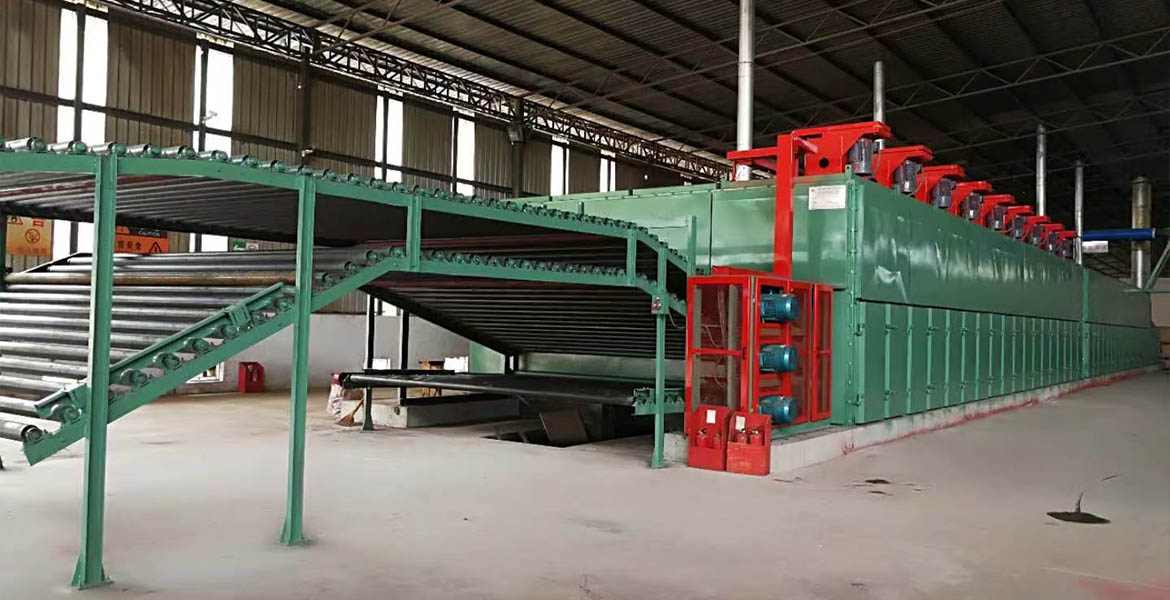

Pu'er Futong Group Wood Industry — BG1333 Three-Deck Roller Veneer Dryer
In 2017, Pu'er Futong Group purchased a BG1333 three-deck roller veneer dryer with a 4,500 mm roller width and a stated daily capacity of 150 m³. The customer's business covers forestry, timber processing and a broad range of wood-based panel products.

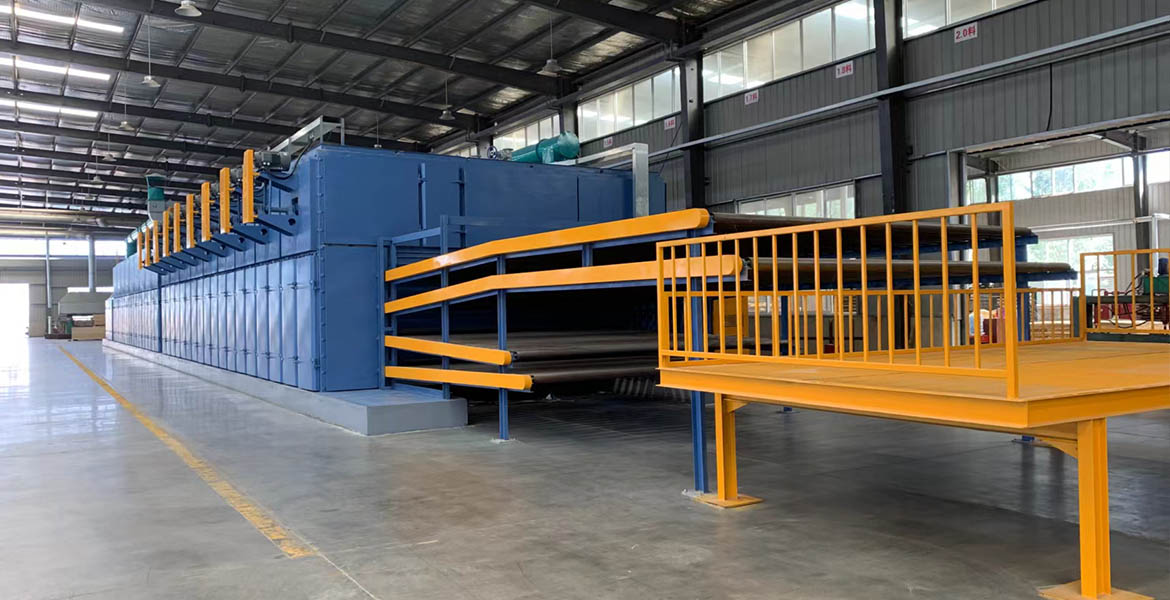

Langfang Dadi Wood Industry — Four-Deck Roller Veneer Dryer
Located in a major plywood manufacturing area in Langfang, Hebei, Dadi Wood Industry selected a large four-deck roller veneer dryer with a 4,500 mm roller width, 18 heating sections and two cooling sections. The stated daily capacity is 200 m³.Daily output is 60 cubic meters, with a conveyor belt width of 2650mm. The customer mainly dries 0.5mm dough sheets.

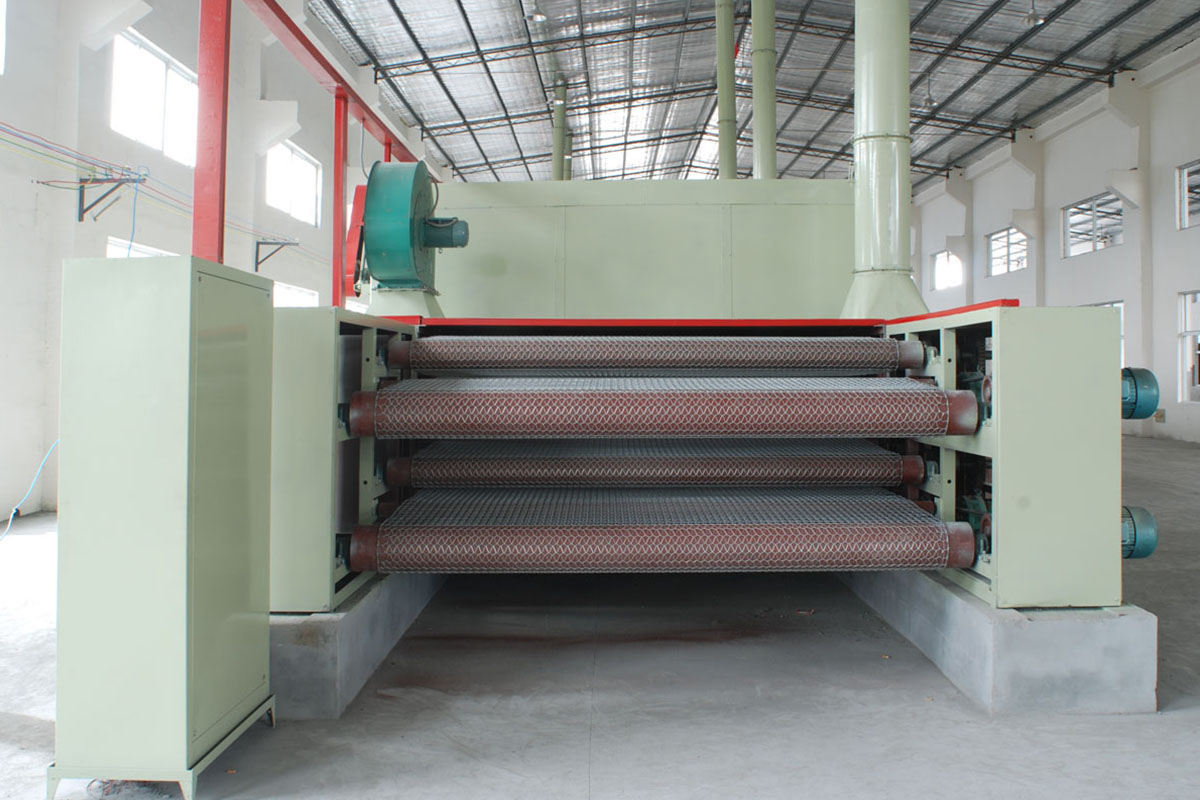

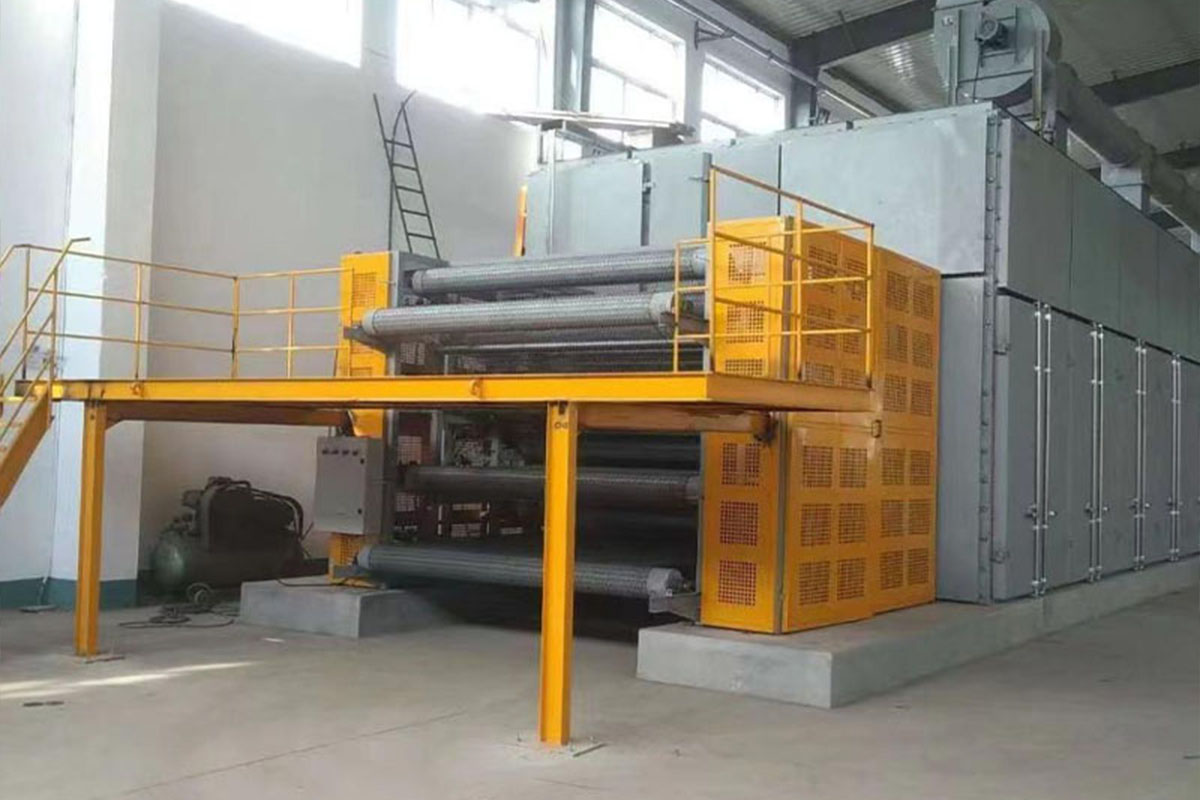

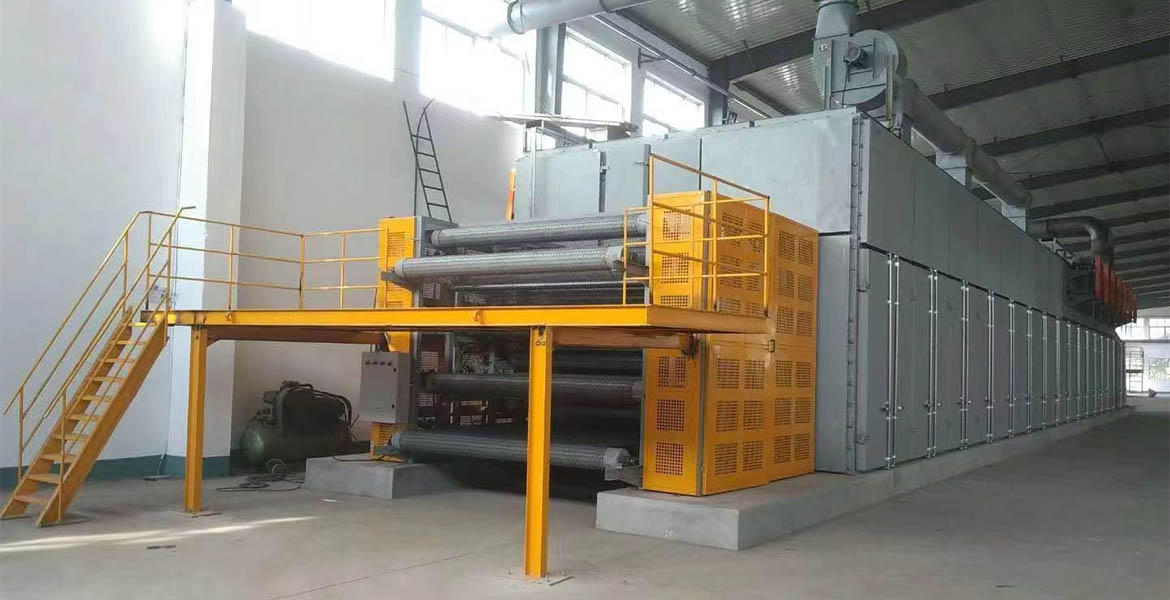

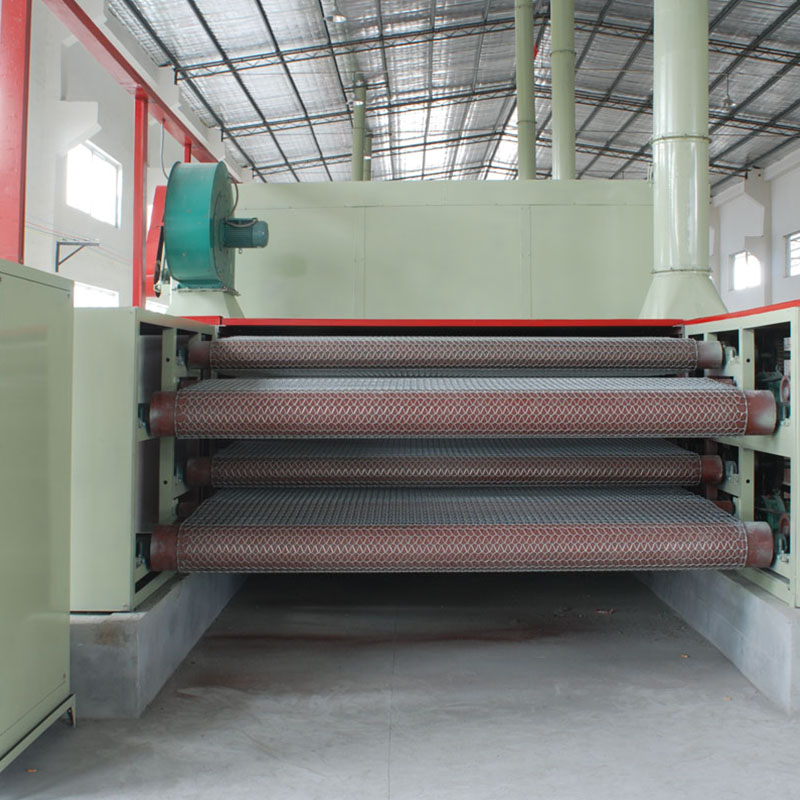

Youxi Mangrove Wood Industry — BG183AA Four-Deck Mesh Belt Veneer Dryer
In 2021, Hongshulin Wood Industry Co., Ltd. purchased a BG183AA series four-layer mesh belt veneer dryer from our company. The dryer has 15 heating chambers and 2 cooling chambers. It is mainly used for drying veneers with a thickness of 1.5mm or less. The company's main business is the production and sales of wood-based composite decorative materials, finger-jointed boards, plywood, and other bamboo and wood handicrafts.
Industry Solutions
solution

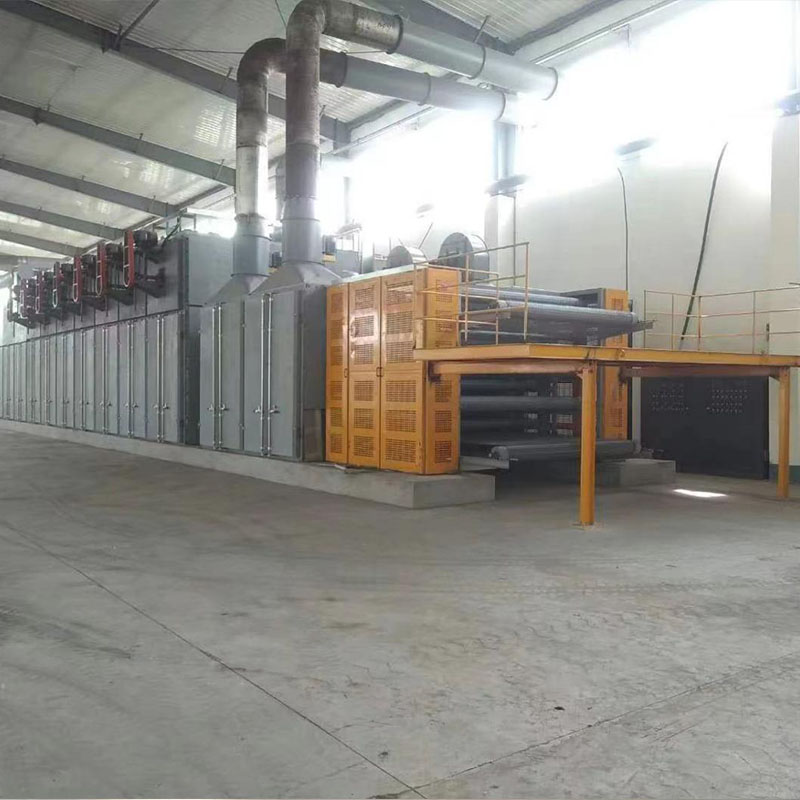

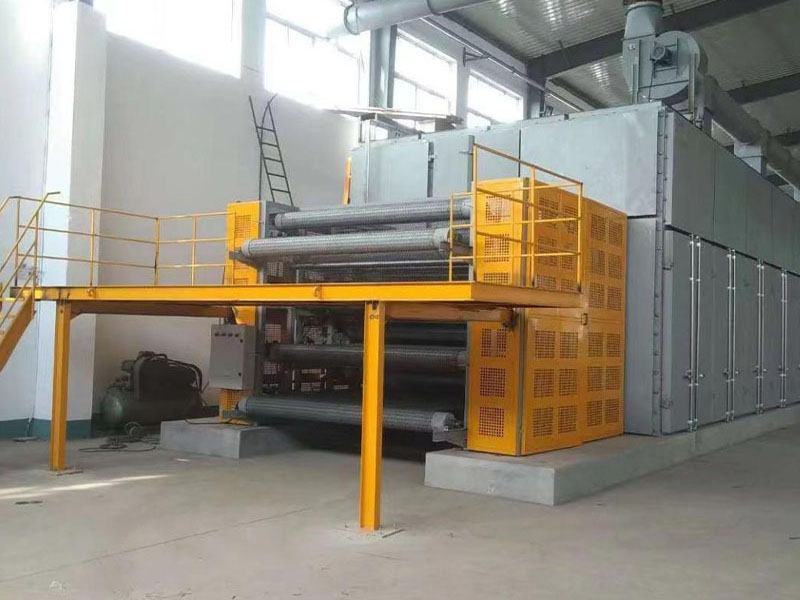

Problem solved with four-layer mesh belt veneer dryer
Faults
Reasons
Remove
Air temperature drops.
Pressure of steam reducing.
Restore the normal pressure, check the steaming system.
Too much condensate water.
Check and replace the exhausting devices. Check and repair heat preserving walls of steaming pipes.
Too much supply of fresh air.
Check valves of heat preserving devices. Adjust the valves of exhausting system.
False running of heating fans, or heat preserving walls being worn.
Adjust heating fans. Mend heat preserving walls.
Heat conduction of heater reducing.
Clear heater off dirt and scraping.
Jetting speed lowers.
Unusual running of heating fans.
Adjust heating fans.
Jam of scraping in heater.
Clear off scraping.
Too much scraping in jetting bellow.
Clear off scraping.
Moisture of air is too high in humidity.
Air temperature dropping.
Check steaming system.
Leak of steaming system.
Mend the leak.
Too low air current.
Check heating fans.
Faults in exhausting humidity system.
Check and repair. Adjust exhausting humidity fans speed.
Efficiency drops suddenly.
Wrong rotating direction of heating fans.
Correct the rotating direction.
Too loose belts.
Tighten them.
Leak of steaming system.
Mend the leak.
Jam of exhausting system.
Clear filter of exhausting system off dirt.
Too high the opposite pressure in exhausting system.
Reduce the oppsite pressure below 1×105Pa.
Invalidation of engines of heating fans.
Change engines.
Veneer cools not enough.
Wrong rotating direction of fans.
Change the rotating diretion.
Wrong adjustment of valves.
Readjust.
Belts run unsteadily.
Not parallel supporting rollers.
Adjust the rollers.
Bad quality of belts or distortion caused by long term use.
Change for better belts.
Small supporting rollers moving due to long term use.
Revise the rollers.
Guiding devices of belts not functioning.
Check and revise.
Wearing of graphite bearings.
Change bearings.
Too loose the conveying chains.
Adjust the tightness of chains.

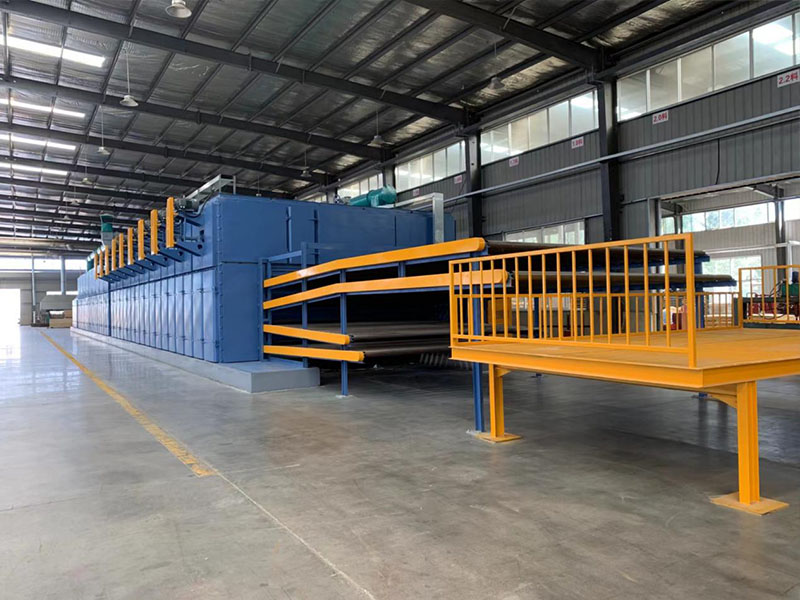

Problem solved with four-layer roller veneer dryer
Faults
Reasons
Ways
Air temperature drops.
Pressure of steam reducing.
Restore the normal pressure, check the steaming system.
Too much condensate water.
Check and replace the exhausting devices. Check and repair heat preserving walls of steaming pipes.
Too much supply of fresh air.
Check valves of heat preserving devices. Adjust the valves of exhausting system.
False running of heating fans, or heat preserving walls being worn.
Adjust heating fans. Mend heat preserving walls.
Heat conduction of heater reducing.
Clear heater off dirt and scraping.
Jetting speed lowers.
Unusual running of heating fans.
Adjust heating fans.
Jam of scraping in heater.
Clear off scraping.
Too much scraping in jetting bellow.
Clear off scraping.
Moisture of air is too high in humidity.
Air temperature dropping.
Check steaming system.
Leak of steaming system.
Mend the leak.
Too low air current.
Check heating fans.
Faults in exhausting system.
Check and repair.
Efficiency drops suddenly.
Wrong rotating direction of heating fans.
Correct the rotating direction.
Too loose belts.
Tighten them.
Leak of steaming system.
Mend the leak.
Jam of exhausting system.
Clear filter of exhausting system off dirt.
Too high the opposite pressure in exhausting system.
Reduce the oppsite pressure below 1×105Pa.
Invalidation of engines of heating fans.
Change engines.
Invalidation of air-driven valves
Replace them.
Steam pressure reducing, then temperature reducing.
Increasing stem pressure to standard.
Veneer cools not enough.
Wrong rotating direction of fans.
Change the rotating diretion.
Wrong adjustment of valves.
Readjust.

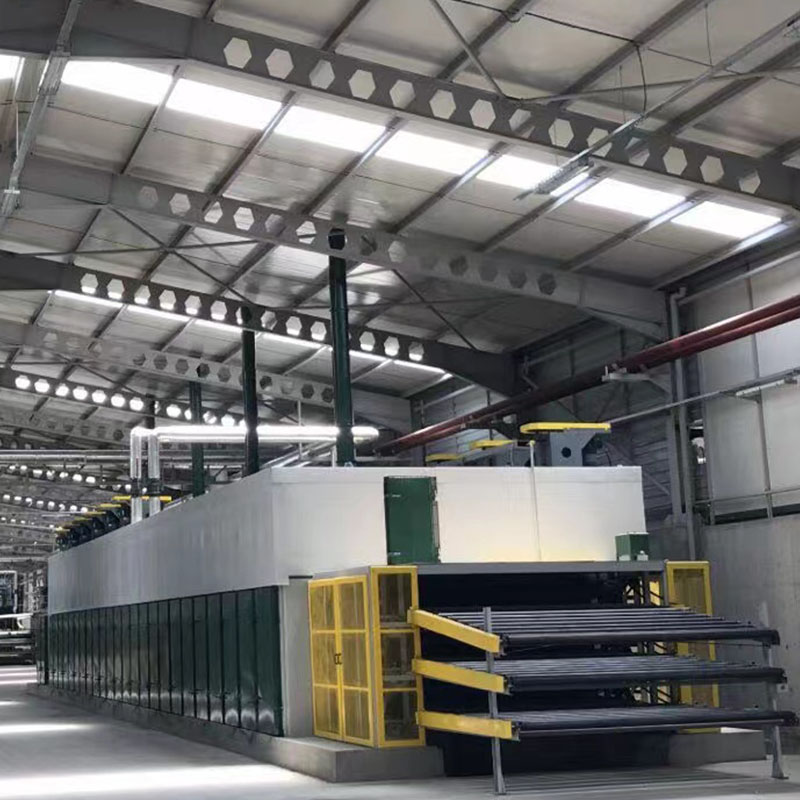

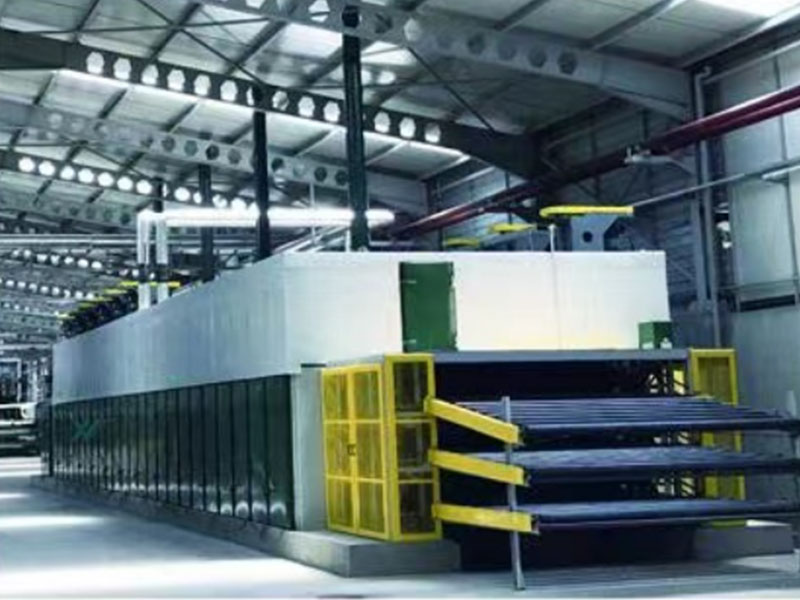

Three-layer mesh belt type veneer dryer problem solving
Faults
Reasons
Remove
Air temperature drops.
Pressure of steam reducing.
Restore the normal pressure, check the steaming system.
Too much condensate water.
Check and replace the exhausting devices. Check and repair heat preserving walls of steaming pipes.
Too much supply of fresh air.
Check valves of heat preserving devices. Adjust the valves of exhausting system.
False running of heating fans, or heat preserving walls being worn.
Adjust heating fans. Mend heat preserving walls.
Heat conduction of heater reducing.
Clear heater off dirt and scraping.
Jetting speed lowers.
Unusual running of heating fans.
Adjust heating fans.
Jam of scraping in heater.
Clear off scraping.
Too much scraping in jetting bellow.
Clear off scraping.
Moisture of air is too high in humidity.
Air temperature dropping.
Check steaming system.
Leak of steaming system.
Mend the leak.
Too low air current.
Check heating fans.
Faults in exhausting humidity system.
Check and repair. Adjust exhausting humidity fans speed.
Efficiency drops suddenly.
Wrong rotating direction of heating fans.
Correct the rotating direction.
Too loose belts.
Tighten them.
Leak of steaming system.
Mend the leak.
Jam of exhausting system.
Clear filter of exhausting system off dirt.
Too high the opposite pressure in exhausting system.
Reduce the oppsite pressure below 1×105Pa.
Invalidation of engines of heating fans.
Change engines.
Veneer cools not enough.
Wrong rotating direction of fans.
Change the rotating diretion.
Wrong adjustment of valves.
Readjust.
Belts run unsteadily.
Not parallel supporting rollers.
Adjust the rollers.
Bad quality of belts or distortion caused by long term use.
Change for better belts.
Small supporting rollers moving due to long term use.
Revise the rollers.
Guiding devices of belts not functioning.
Check and revise.
Wearing of graphite bearings.
Change bearings.
Too loose the conveying chains.
Adjust the tightness of chains.
ABOUT COMPANY
The Director Unit Of
CHINA NATIONAL FORESTRY MACHINERY ASSOCIATION
Changshu city xiangying wood-based panel machinery factory is the director unit of CHINA NATIONAL FORESTRY MACHINERY ASSOCIATION. Our company locates in the southern suburbs, and the total area is 18000 square meters, building area is 15000 square meters, it is the professional enterprise of developing veneer equipments, also is the biggest manufacturing company and on the leading position in this industry of the national veneer dryer. Our company is made up of senior professional tetchiest, there is more than 30 years old history that our company is engaged in developing veneer equipments. There are some products such as 4 rollers glue machine, high-speed transverse-circulating cutting machine, multi-decks belt, roller and belt-roller compound veneer dryer machines. We employed some famous experts as our advisers to develop every product, now our company supplies these products for many customers from home and abroad. We sell our products to many cities in China and also export to other countries such as Malaysia, Indonesia, Bangladesh, Gabon, Cameroon, Russia, Kazakhstan, Georgia, Turkey, Egypt and Ukraine, Vietnam,Sri Lanka and so on. Especially the last ten years our company's dryer machines have some advantages such as stable advanced skills, the reliability quality and lower-consume and high efficiency. Then we get the approval and trust from other companies, it is the most sales of the national markets and exports, in addition, we are in the leading position more than ten years.
OUR BLOG
BLOG

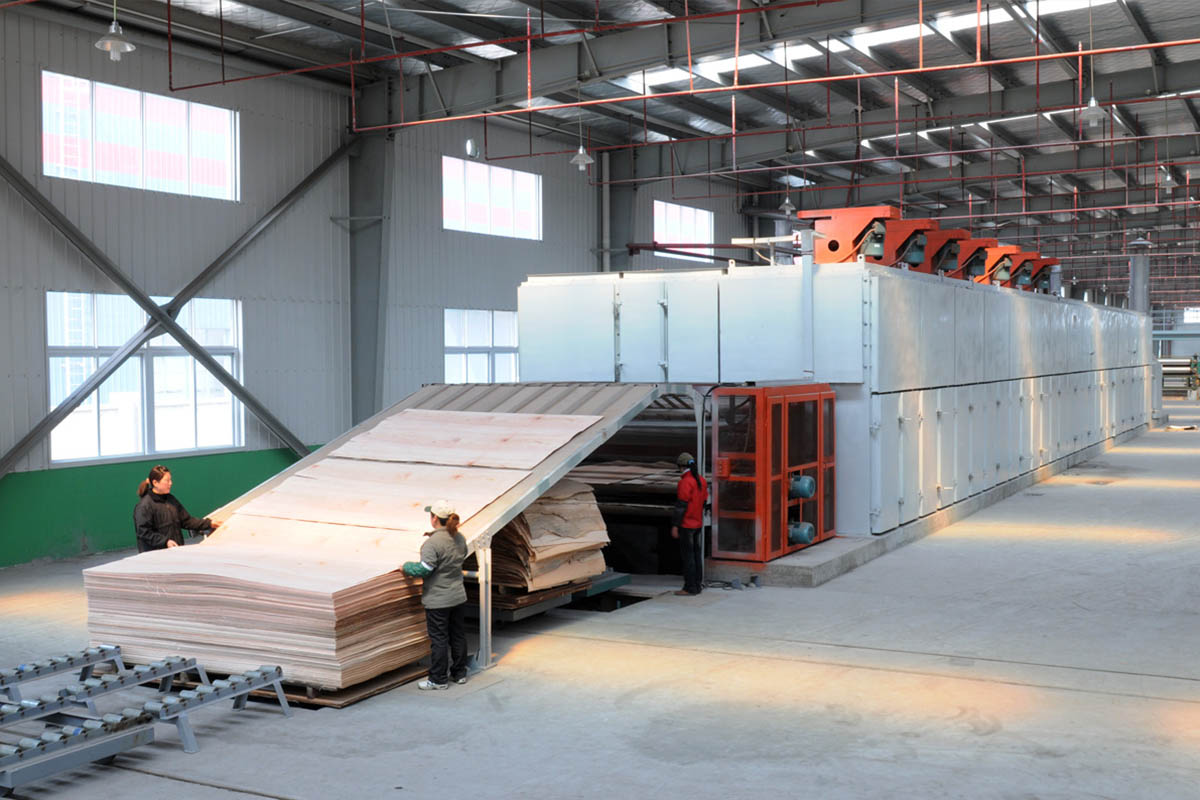

Routine Checks for Stable Veneer Drying
Operators should regularly inspect heat-supply pressure, condensate discharge, fan operation, exhaust-air settings, conveyor condition and heat-exchanger cleanliness. Recording inlet moisture, outlet moisture, line speed and drying temperature makes it easier to identify trends before they become production problems.
Five Factors That Affect Veneer Dryer Capacity
Dryer output is influenced by drying temperature, initial veneer moisture, wood density, veneer loading density and heat-exchanger cleanliness. Because these conditions vary between factories, published capacity figures should be treated as configuration references. A reliable selection should be based on the customer's actual material and production data.
How to Select a Veneer Dryer
Choosing a dryer starts with the veneer itself. Face veneer, core veneer and mixed production lines often require different conveying structures. Buyers should prepare veneer species, dimensions, thickness, initial and final moisture, daily output, heat source and available plant space. This information helps determine whether a mesh belt, roller or combined dryer is the right starting point.
BG1933B Three Deck Mesh Roller Combined Veneer Dryer
BG1932 Two Deck Mesh Roller Combined Veneer Dryer

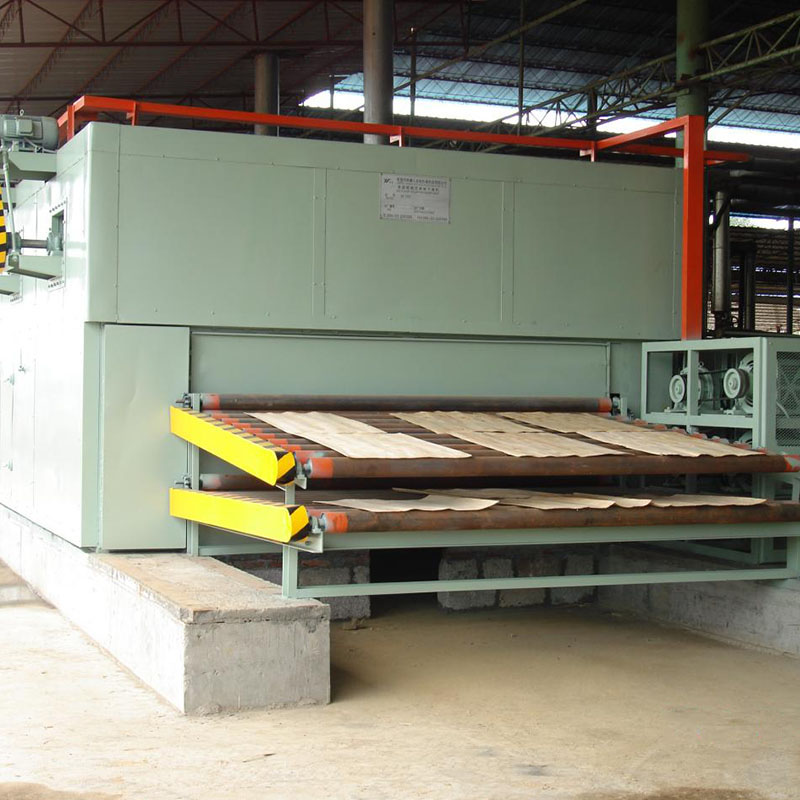

BG1332 Two Deck Roller Veneer Dryer
